Schematic Design in Dana Point

Posted on by Lauren Moss

On the boards for 2016: here's the first look at a few preliminary design drawings for an addition + renovation to a dana point beach cottage...

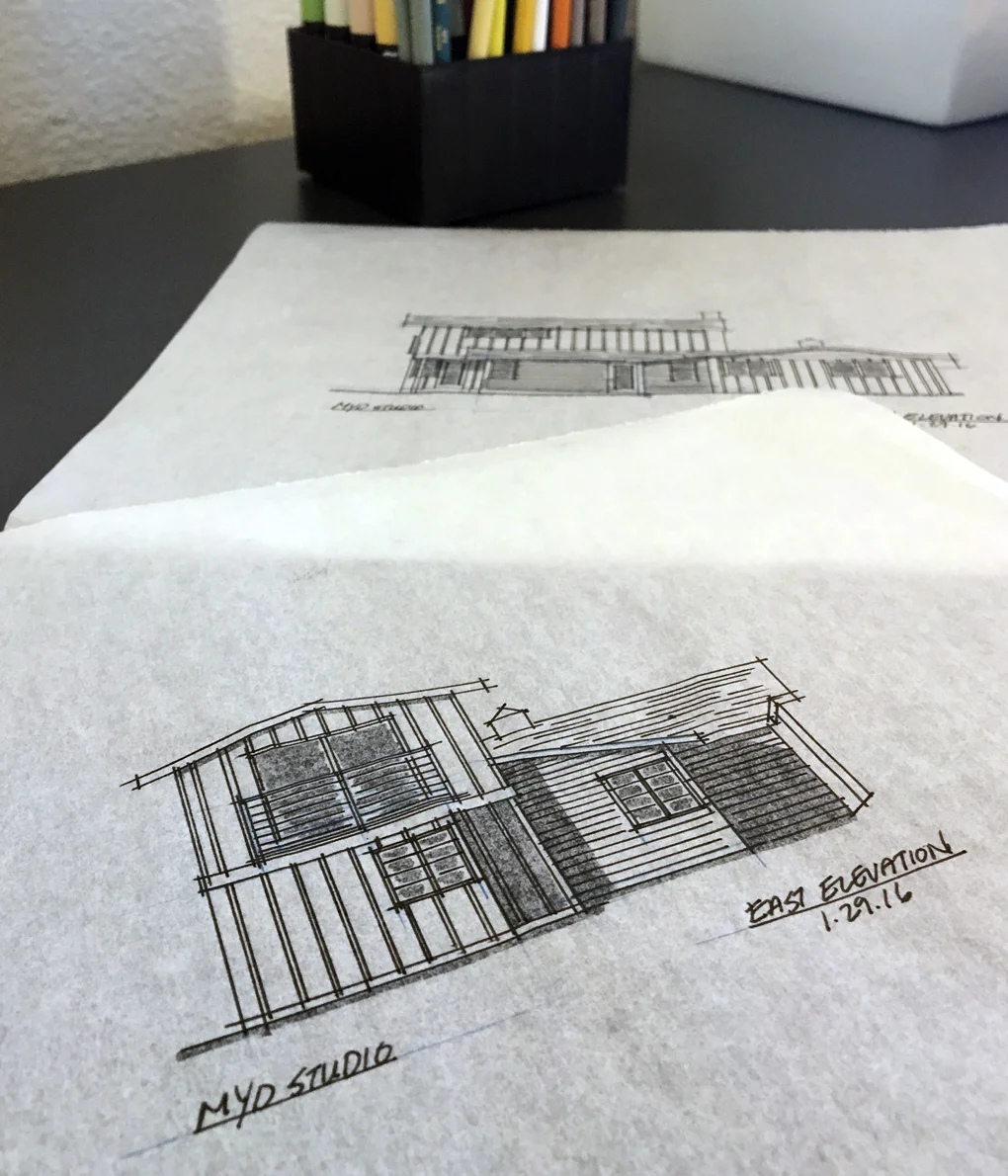

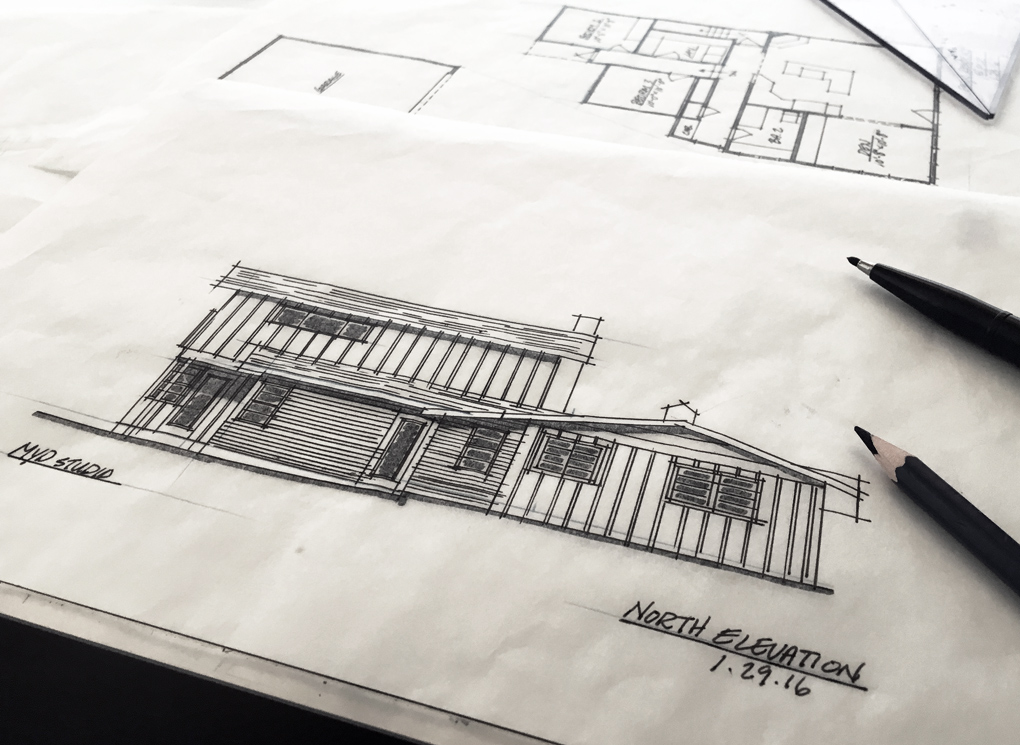

dana point cottage / schematic elevations

The expanded floor plan adds square footage at both floors, allowing for two new bedrooms at the rear of the existing home, an open living room and kitchen at the front, and an updated and enlarged master bedroom and bath upstairs.

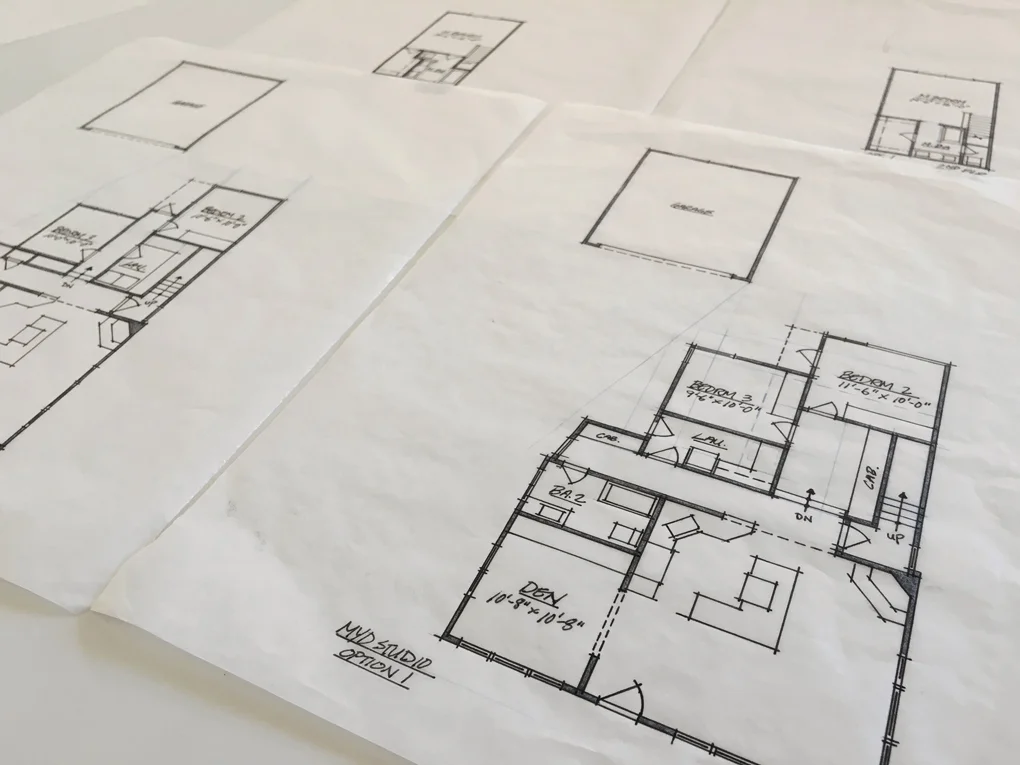

schematic design / floor plan

schematic design / floor plan

Initial design concepts explore opportunities to maximize the efficiency and development potential at the compact site, while maintaining existing structural and design elements where possible.

dana point cottage / schematic design drawings

The associated exterior elevation drawings illlustrate a modern design aeshetic and playful material palette of wood and corrugated metal, highlighting the coastal cottage details within the context of new contemporary spaces.

preliminary design sketches / dana point modern cottage

preliminary design sketches / dana point modern cottage

More project information and details to come...
